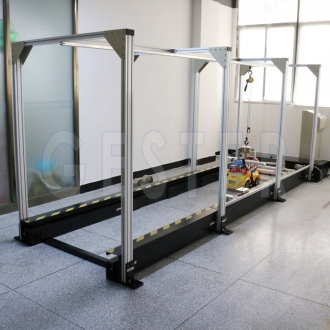

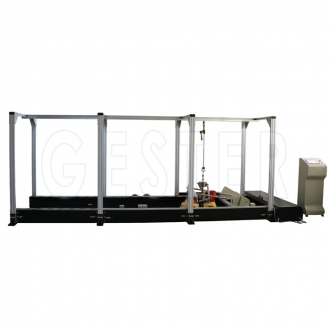

应用程序: This Toy Dynamic Strength (2m/s) Tester is mainly used to test the dynamic strength of wheeled ride-on toys. Can simulate driven toys vertically hit the inelastic step in a steady speed of 2m /S ± 0.2 /S, then observe the damaged condition. Applied to toy bicycles, scooters, roller-skate and etc.
Standards: EN71-1 section 8.22 ; ASTM F963 section 8.20 ISO 8124-1 section 5.24.4 and 5.27 ; GB 6675 section 5.24.4
|

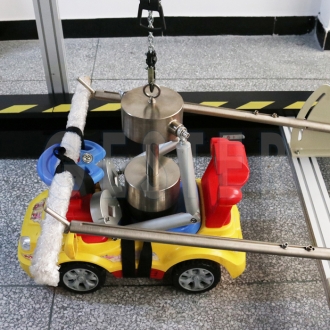

2m/s TesterTest principle: 1.Load the toy for 5 min in the most onerous position with the appropriate mass on its standing or sitting surface. 2.Secure the load to the toy in a position corresponding to the normal use of the toy. 3.Drive the toy three times at a speed of 2 m/s ±0.2 m/s into a non-resilient step with a height of 50mm. 4.Check the structure and performance of the sample is intact or not. 5.If the toy is intended to bear the mass of more than one child at a time, test each sitting or standing area simultaneously.
Key Specifications
Accessories
Standards accessories |
1set |
GT-MA19Dynamic Strength TestLoad A and Load B |
Optional accessories |
Optional |
GT-MA16 Loads for stability test: for ISO 8142-1 section 5.24.4 and GB 6675 section 5.24.4
|
Optional |
GT-MA21 Static strength test load for ASTM F963 section 8.20 |
Optional |
GT-MA20 Test platform block for EN71-1 section 8.22.3.3 and ISO 8124-1 section 5.27.3
|
Optional |
GT-MB01Sharp Edge Tester |
Optional |
GT-MB04Sharp Point Tester |
Specification (for Dynamic Strength Test Loads)
Part |
Mass kg (lbs) |
Diameter mm (in) |
H8毫米(在) |
a |
10.42 (23.0) |
150±2 (5.9±0.1) |
75±2 (3.0±0.1) |
b |
14.58 (32.1) |
178±2 (7.0±0.1) |
75±2 (3.0±0.1) |
c |
4.16 (9.2) |
|
|
d |
2.00±0.02 (4.4±0.04) |
|
|
e |
0.50±0.01 (1.1±0.02) |
|
|
Applications Industry
All kinds of children products can be tested on theToys Testing EquipmentDynamic Strength & 2m/s. Tester |
