Baby Stroller Handle Durability Tester GT-MH25

(Toys Testing)

Item NO.:
GT-MH25
Lead Time:
30 days
Brand:
GESTER
Payment:
T/T， L/C
certificate:
ISO 9001, UKAS, CE
standard:
在1888-2012 Section 8.10.6.2.2, 8.10.6.2.3; GB14748-2006 Section 5.12

Contact Now

Description

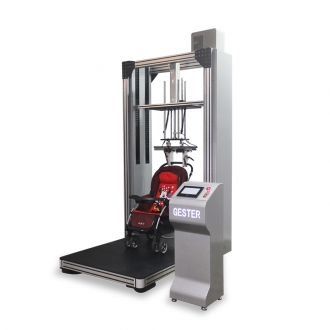

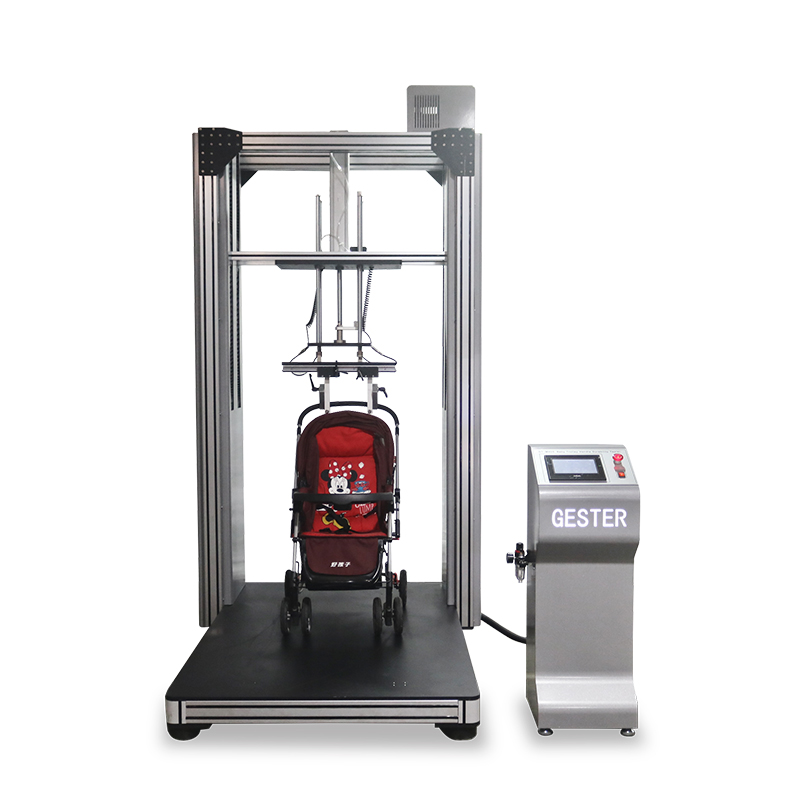

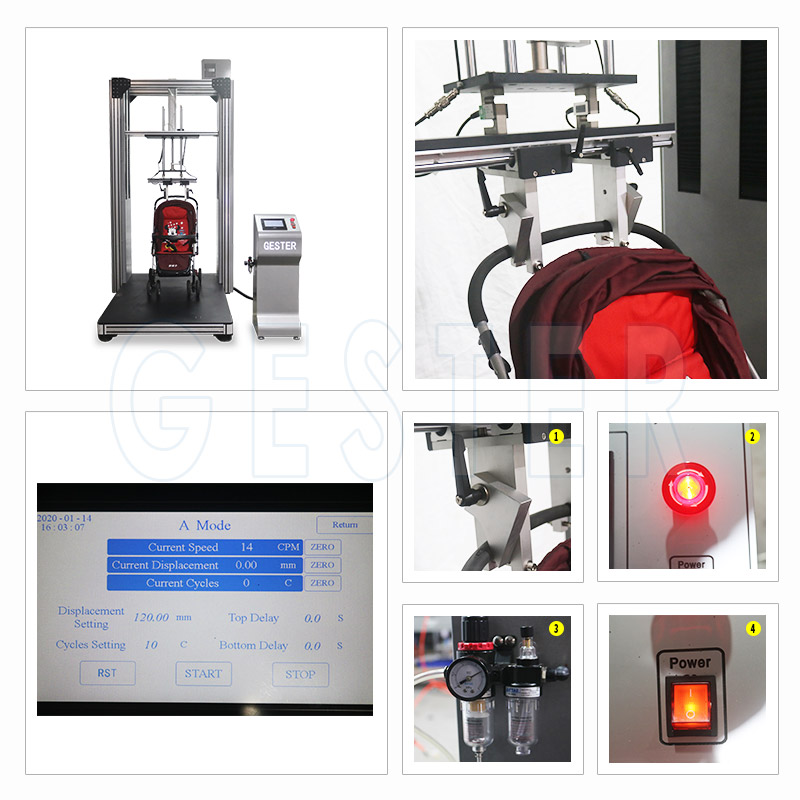

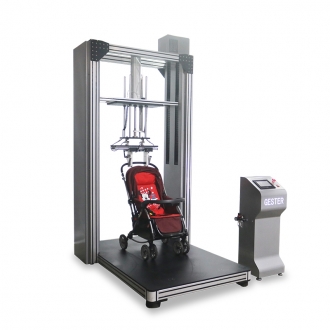

Baby Stroller Handle Durability Tester

应用程序:

This machine is suitable for baby trolley simulation over the barrier when the lifting and under the action of the durability test, the test method is to place the baby model in the car, raised when the car back to the ground 120±10mm, under pressure When the front wheel to the ground 120±10mm, 15±2 times per minute, and continue to test the number of times after the test, the visual car with or without damage.

Standards:

在1888-2012 Section 8.10.6.2.2, 8.10.6.2.3; GB14748-2006 Section 5.12

Key Specifications

Test beams can be adjusted up and down	0-500mm
Lifting & push stroke can be adjusted range	100-200mm, can meet all the standard test requirements, control accuracy ± 4mm
Control mode	PLC + 7 inch touch screen control
Action	pneumatic cylinder
Power Supply	AC 220V, 50Hz
Optional accessories	GT-MH01 Test Mass A
	GT-MH02 Test Mass B
	GT-MH06 Test Mass F
Stroller handle fixed fixture, adjustable direction, cut the left and right position adjustable 400mm range
You can programmatically control the number of tests and the interval
Power off automatically save, can be pre-selected to stop or continue to work
