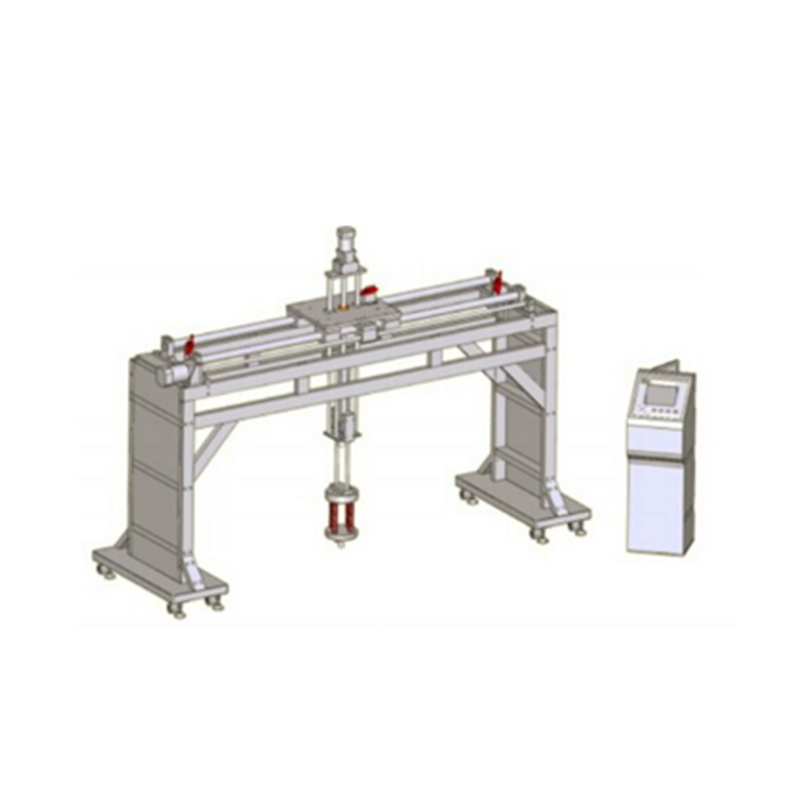

Bed And Mattress Comprehensive Performance Tester GT-LA09

Applications:

This machine is the newest design bed andmattress comprehensive performance testeraccording to EN 1725 standard.

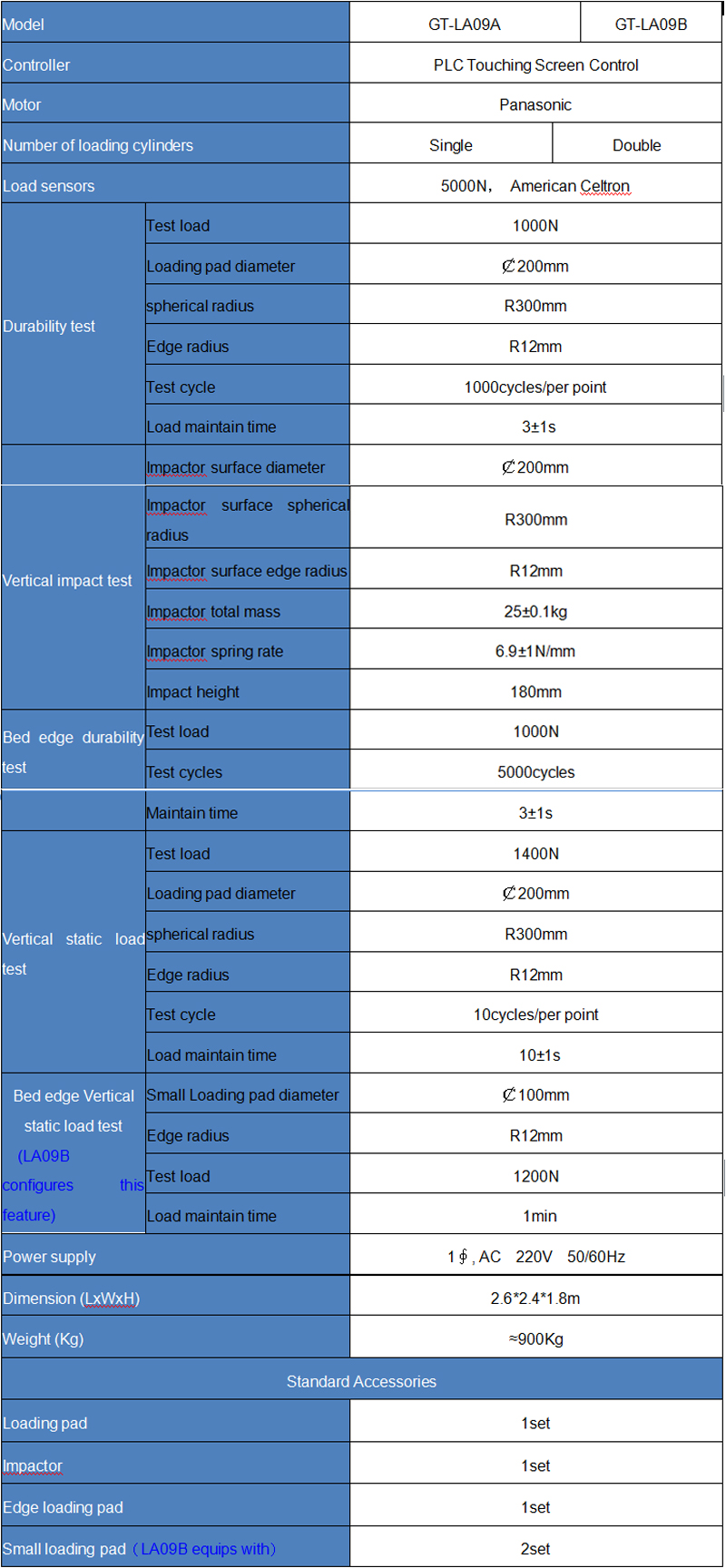

In general, the machine is configured with the following test functions:
Vertical impact test:allow impactor to fall freely from a height of 180mm onto the test unit.
Durability test:test simulating the repeated application of loads The durability test is a procedure mainly intended to evaluate the change of the properties of the test unit caused by repeated loading.
Bed edge durability test:apply a force of 1000N for 5000 cycles by means of edge loading pad at the bed edge test point, then measure the height loss .
Vertical static load test:apply a vertical forces of 1400N for 10s downwards using the loading pad on the bed base.
Bed edge vertical static load test:using two loading pads apply two forces of 1200N for 1min on the centre line of the bed frame side member.（LA09B configures this feature）

Standards:

EN 1725 section 7.3, 7.4, 7.5, 7.6, (Method 7.7 uses LA09B)
