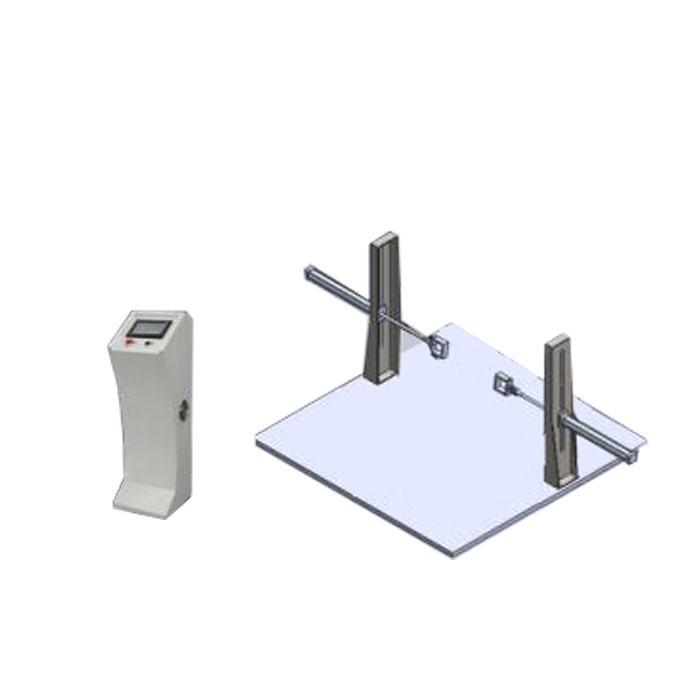

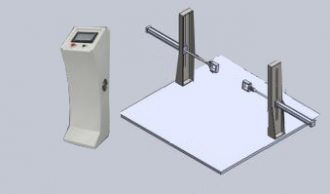

Chair Sideways Testing Machine GT-LB12

应用程序:

This test machine is used to simulate the loading condition of the chair in daily use, and test the lateral static load strength of the handrail.

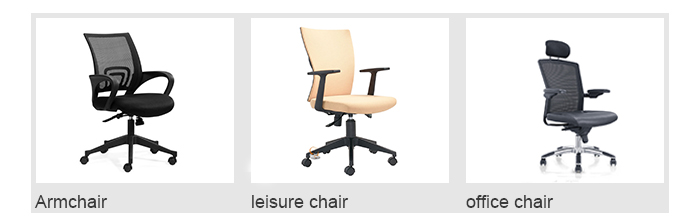

The machine is equipped with two drive devices, and can be individually controlled separately to repeated load for the test point of the seat . Through different parameter settings, can do the test for different seats.

Standards:

EN 1728-2012 Section 6.10, 7.7

EN581-2-2015 （EN1728-2012),

EN1335-3 -2009 Section 7.2.5

在1729-2-2012 Section 5.3.5

ISO 7173-1989 Section 7.3,

GB/T 10357.3 -2013 Section 4.5

BIFMA X5.1 - 2011 Section 14

在16139-2013 （EN1728-2012)

BS5459-2-2000 Section A7.2

QB/T 2280-2007 Section 6.6.6
