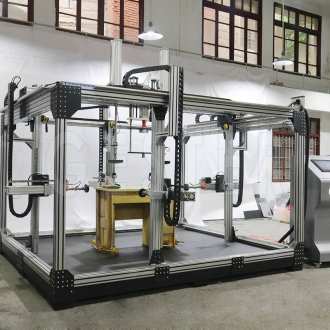

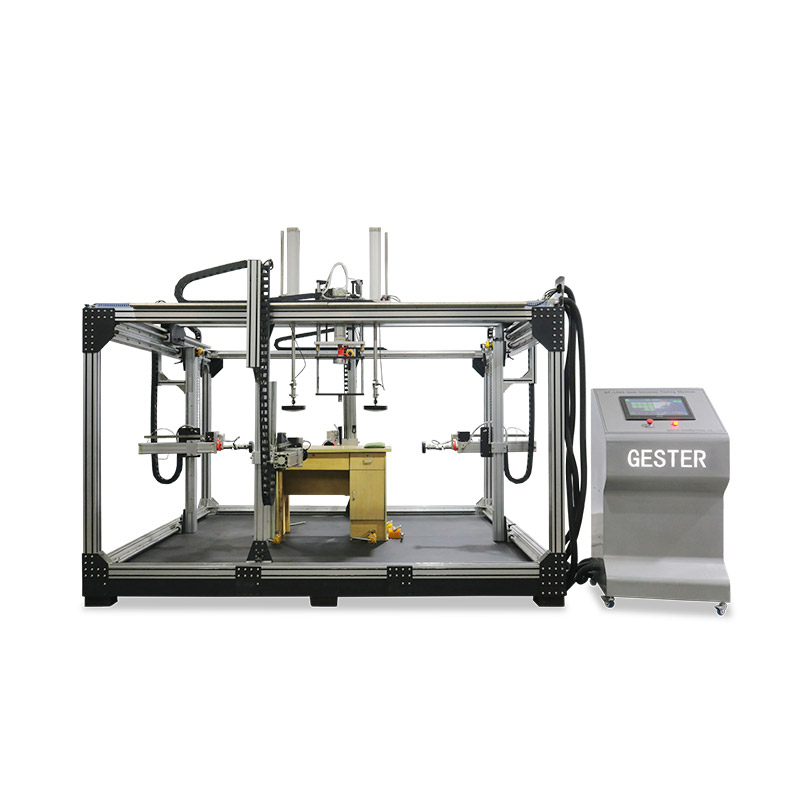

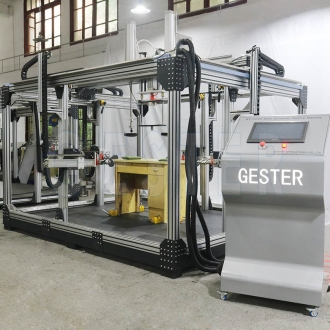

Furniture Universal Testing Machine GT-LA10

应用程序:

Furniture Universal Testing Machineis used for testing the mechanical properties of tables , desks ,beds. Can perform the horizontal static load ,vertical static load, impact test and durability test.

Feature

1. The machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.

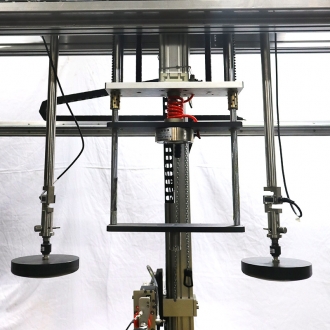

2.最多安装了8组循环器，每侧一组，顶部框架3套，一组保留。所有圆柱体都可以上下调整，前后向后和向后进行调整，以覆盖所有安装表面。八组圆柱体可以执行关节或独立操作。
3. The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.
4. PC controller to control the actions of the instrument; the operation is intuitive and simple.
5. Using the precision pressure regulating valve to adjust the pressure to change the loading force value; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.

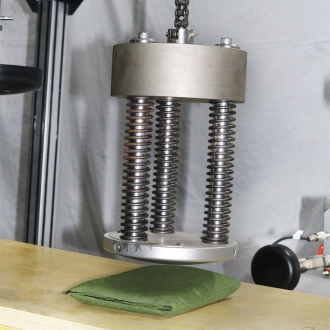

6. Removable loading pad, can easily change the different loading pad to meet the different test requirements.

Tables & Desks&Storage Units:

EN1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 7.2, 7.3 ,
BS EN 15372-2016 Test1, Test2,Test3,Test5, Test6,Test8,Test10,
AS NZS 4610.3-1999 Annex B,D,E,G,N,P,R
AS NZS 4442-1997 Annex A,B,H,J
EN527-3, EN581-3,
GB/T 10357.1,
BIFMA X5.5 - 2014,
BIFMA X5.6 - 2010,
BIFMA X5.9 - 2012

Chairs:

EN 1728-2012 Section 6.4, 6.5, 6.7, 6.12, 6.15, 6.16, 6.17, 6.24,7.3, 7.4,7.9, 8.2, 8.4.1,8.5 , 8.8（6.25, 6.26 optional accessories)
EN581-2-2015 (corresponding with EN1728-2012),
EN1335-3 -2009 Section 7.2.1, 7.2.2, 7.3.1
EN 1729-2-2012 Section 5.3.2, 5.3.3, 5.3.5, 5.3.6, 5.3.7（5.3.8 need the optional accessories)
EN 16139-2013 (corresponding with EN1728-2012)
ISO 7173-1989第7.1、7.2、7.3、7.5、7.6、7.7、7.8、7.10（7.11,7.12）
BS5459-2-2000 Section A5.1 5.2 (A5.3, A7.4 need the optional accessories）
BS5459-2-2000 Section A5.2,
BIFMA X5.1 - 2017 Section 7, 10.3
QB/T 2280-2007 Section 6.6.4, 6.6.3, 6.6.9 , 6.6.13.1
GB/T 10357.3 -2013 Section 4.3, 4.4,4.7,4.8,4.10,4.11,6.9 (4.13,4.14 need the optional accessories)

床：

EN 1725 Section 7.3, 7.4, 7.5, 7.6 ,7.7
EN 747-2 Section 5.4,5.5,5.6.1,5.7,5.8
