Test Platform For Step Test GT-MS07

(Toys Testing)

Item NO.:
GT-MS07
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE
standard:
在1273-2020 Section 4.6, 4.7, 8.10.2 , 8.11 ,8.12

Contact Now

Description

应用程序:

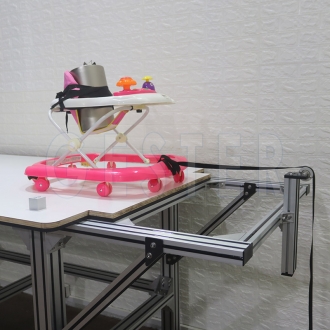

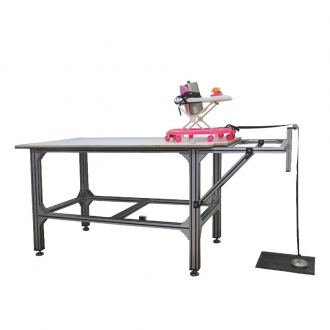

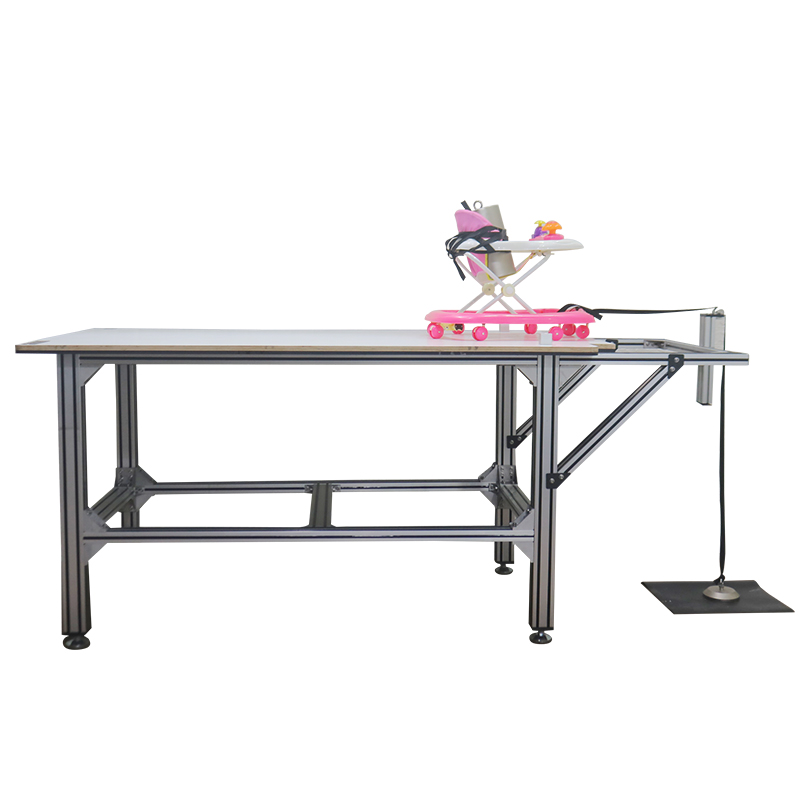

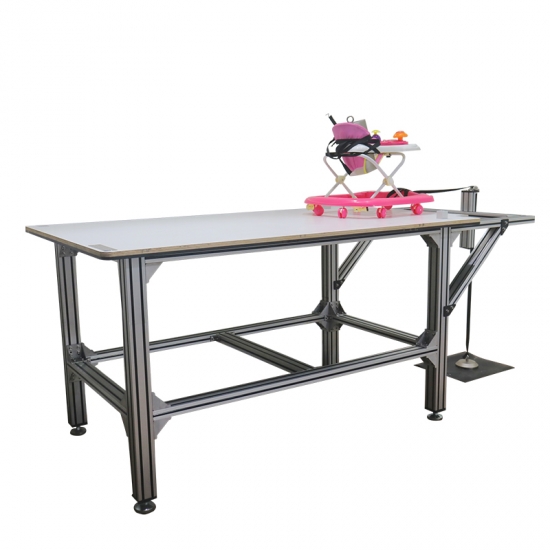

Test platform is made of a hardwood flooring pre-finished with polyurethane varnish material .it is used to prevention of falls down steps test and tip over test for baby walking frame.

Standards

在1273-2020 Section 4.6, 4.7, 8.10.2 , 8.11 ,8.12

Key Specifications

Model	GT-MS07
Test platform Length	2000 mm
Test platform Width	＞1200 mm
Thickness of Board	18mm
Standard accessories:
Aluminium angle	Side length: 25×25mm, wall thickness 2±0.5mm, length: 1.5m	1 Pc

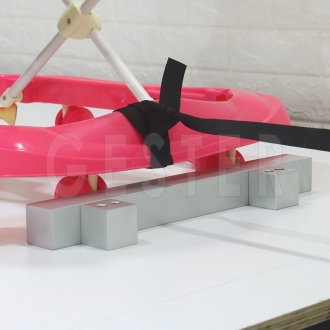

Aluminium stop	Height 40mm, thickness at least 10mm	1 Pc
Rigid plate	(50±2)×(50±2)mm	1 Pc
Square aluminum bar	Side length: 40×40mm, length Min. 200mm	2 Pcs
Steel cable	Diameter: 2±0.1mm	1 Pc
Pulley	Diameter: 80 mm	1Set
Optional accessories:
Test mass B	GT-MS02Test Mass B	1 Pc
Test mass C	GT-MS03Test Mass C	1 Pc
Test mass D	GT-MS08Test Mass D	1 Pc
Push pull gauge	IMADA FB-200N Push-Pull Scale	1 Pc
