Local Loading Pad GT-LB01-5

(Furniture Testing)

Item NO.:
GT-LB01-5
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T ,L/C
certificate:
ISO 9001, UKAS, CE
standard:
EN 1728-2012, EN581-2-2015, EN1335-3-2009, BS5459-2-2000, GB10357-3 -2013, ISO7173-1989

Contact Now

Description

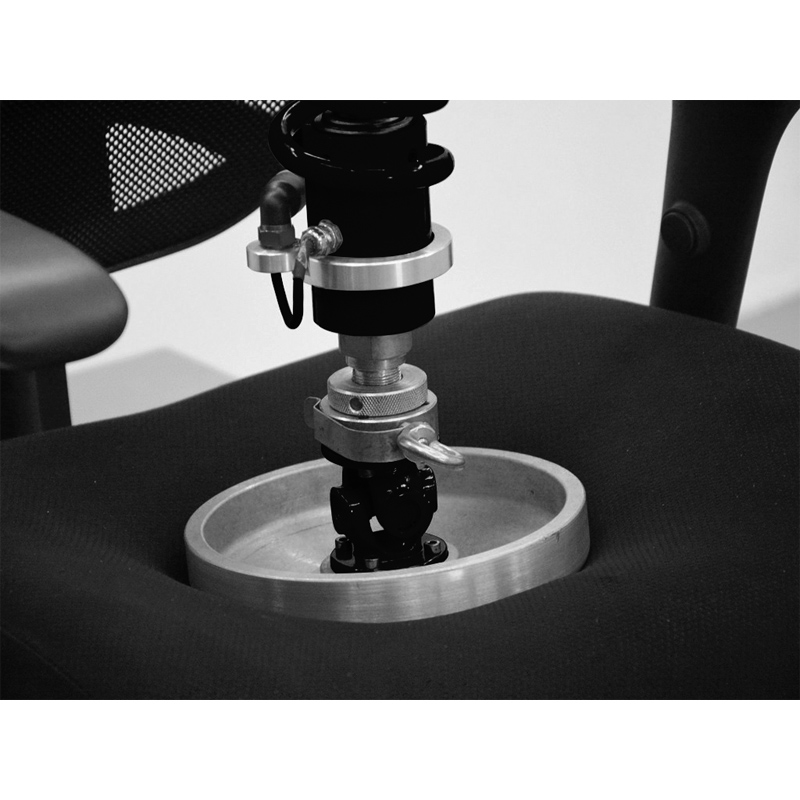

Local Loading Pad

应用程序:

Local loading pad, which is a rigid cylindrical object 100 mm in diameter, with a flat face and a 12 mm edge radius.

Standards:

EN 1728-2012 Section 5.7 , EN581-2-2015, EN1335-3-2009Section 5.5 , BS5459-2-2000 Section A3.7, GB10357-3 -2013Section 3.4, ISO7173-1989 Section 6.6, EN 1022-2018 Section 5.10

Key Specifications

Model	GT-LB01-5
Material	Plastic steel
Loading pad diameter	100mm
Load pad chamfer radius	R12mm
Load cushion thickness	50mm
Dimension (L×W×D)	100×100×50mm
Weight	5 kg

Applications Industry

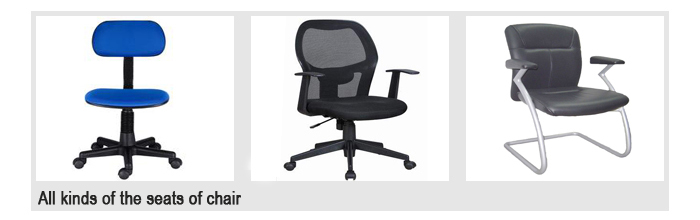

All kinds of seats of chair can be tested on theLocal Loading Pad
