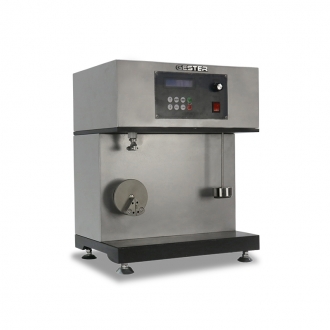

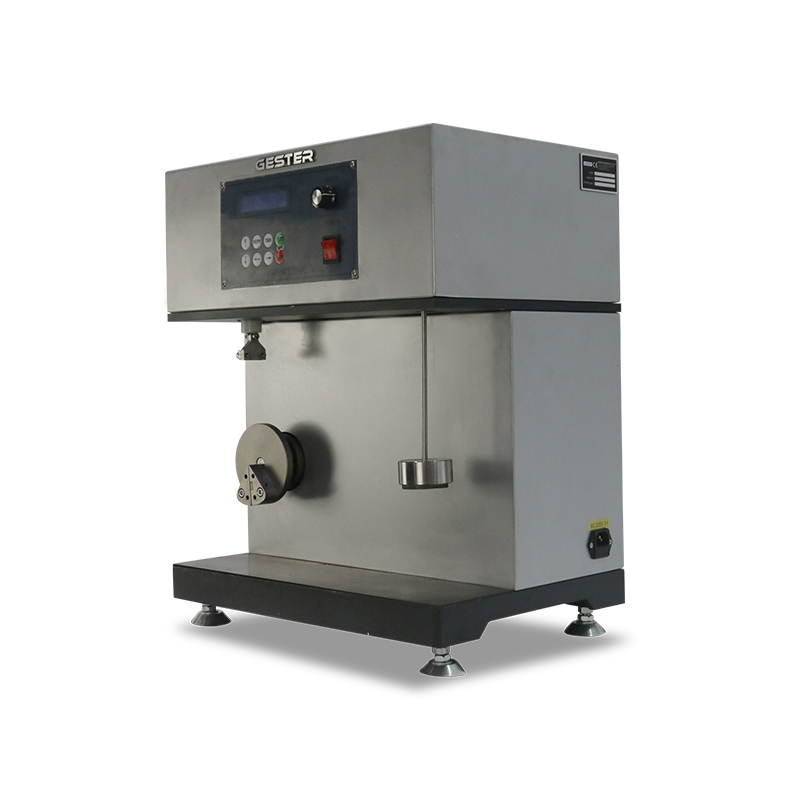

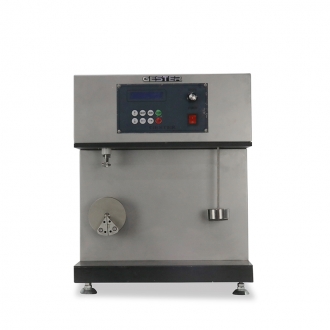

MIT Type Folding Endurance Tester GT-N16

(Furniture Testing)

Item NO.:
GT-N16
Lead Time:
20-30 days
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE
standard:
ISO 5626, GB/T 2679.5, QB/T 1049

Contact Now

Description

MIT Folding Endurance Tester

应用程序:

MIT Type Folding Endurance Tester has various functions, such as, parameter testing, parametric transformation, parameter regulation, parameter display, parameter memory and parameter print. The tester has data processing function which can directly output result of statistical data with convenient operation, easy regulation and stable performance. The main functions are shown as following , compact structure, light weight, abundant functions, horizontal type and stable performance, so the tester is suitable for different paper and boards.

Standards:

ISO 5626, GB/T 2679.5, QB/T 1049

Key Specifications:

Measuring Range	0 - 99999
Folding Angle	135±2°, Folding Frequency: 175±10 times/min
Folding Head Width	19±1mm; Folding Radius: 0.38±0.02mm
The spring tension	4.91N~14.72N, when every 9.81N tension is added, the compression of spring is 17 mm reduced at least
The clearances between folding ports	0.25, 0.50, 0.75 and 1.00mm (four ranges)
The tension change due to the eccentric rotating of clamping folding head	Should not be larger than 0.343N
