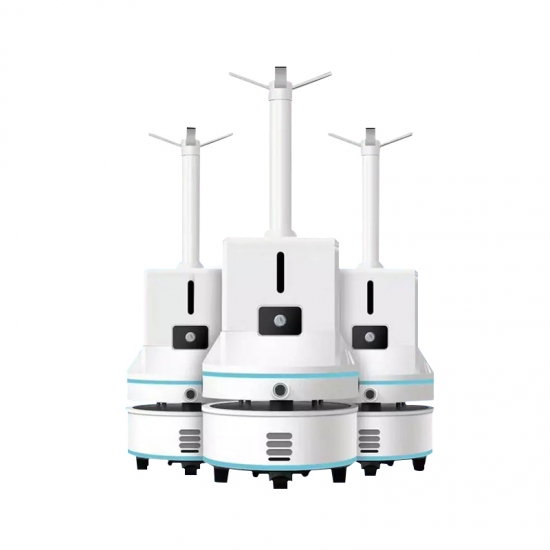

The atomizing disinfection robot is by quickly atomizing the disinfectant and automatically spraying into the disinfection area to get the air effectively purified. Using 100mg/L hypochlorous acid disinfectant, according to the amount of 5ml/m3, continue to spray evenly into the space to disinfect.
|
Specification
- Disinfection Robot support the use of disinfectants such as hydrogen peroxide, sodium hypochlorite, and peracetic acid.
- The large-capacity 16L disinfectant tank can continuously disinfect for more than 5 ~ 6 hours, and the disinfection coverage is up to 4000 ~ 5000 m2.
- ultraviolet disinfection robot support APP control, no-touch automated disinfection greatly improve the safety of use in the disinfection process.
- Two disinfection modes: timed disinfection and immediate disinfection.
- With autonomous navigation function, lidar obstacle avoidance, can fully cover the required area.
- Support automatic return to charge, human assistance isn’t required.
- When the disinfectant is below the warning position, it will return to the waiting area and turn off the spray device automatically.
Key Specifications
Model |
GT-R800 |
External Size(mm) |
φ500*1335 |
Atomization Efficiency |
2L~3L/H(adjustable) |
Disinfectant Capacity |
16L |
Spray Diameter |
5-6m |
Disinfection Medium |
Hypochlorous acid,Chlorine dioxide,Hydrogen peroxide,Peroxyacetic acid, etc. |
Spray Method |
Four-direction spray, large opening spray(optional) |
Moving Way |
Autonomous path planning and automatic navigation |
Moving Speed |
0~0.6m/s |
Power Supply |
AC220±10%V 50Hz |
Consumption |
150W |
Drive Method |
Differential drive |
Ability to Cross Obstacles |
±10mm |
Gradeability |
≤8° |
Driving Channel Width |
≥700mm |
Noise |
≤50dB |
Operating Time |
5~6h |
Battery |
Lithium battery 28AH 24V |
Charging Time |
3~4h |
Safety System |
Lidar obstacle avoidance, power-off protection of disinfectant shortage |
Package Size |
Main Body |
415*415*633mm |
Chassis |
614*614*750mm |
Gross Weight |
Main Body |
8.2kg |
Chassis |
70.4kg |
|
