应用程序:

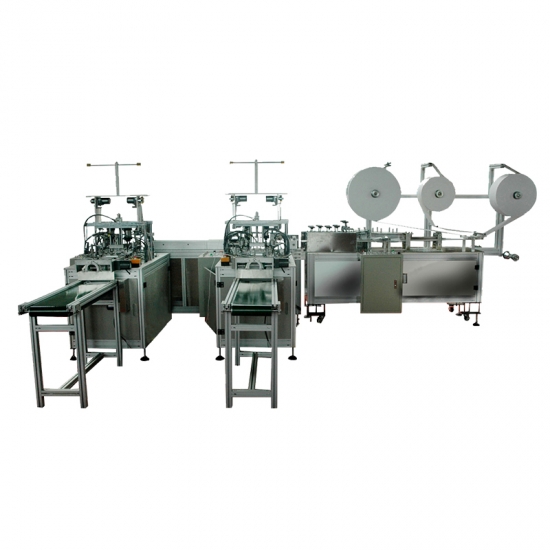

Thismask production machinescan complete a full mask production, only need one operator to operate the whole production. This production line achieved the full automatic production of plane mask,mainly including the technologies of coil material feeding, folding and pressing, nose bridge bar feeding, mask forming, mask cutting, ear band feeding and welding, and finished product blanking, etc., to complete the whole production process from raw material to finished mask.
|
Feature
1.Medical face mask making machinehigh speed production, 120,000-140,000 pieces per day. 2.Tube into the material,precise positioning, make raw material width control to the minimum, save cost. 3.妈king the length size of products unify, deviation is ±1 mm, can effectively control the length of products. 4.High degree of equipment automation,making the low skill requirements on workers,who only need to put the material and sort out the products. 5.Thesurgical face mask machineadopt the ultrasonic system and Transducer, make the performance more stable and easy to operate.
|
Key Specifications
Dimensions |
6500(L)*3500(W)*1950mm(H) |
Weight |
1900kg |
Color |
Metal Plate: Warm grey 1CAluminiumProfile:Original |
Power Supply |
220VAC±5% 50HZ Ground Protection Rated Power: ≤10KW (Includes Welder) |
Air Compression |
0.4-0.6 MP (Clean air after dewater, oilless, filtration and pressure stabilization. Using Flowing Capacity: ≈300L/min |
Production Efficiency |
≥ 100PCS/ min |
Product Qualification Ratio |
99% (Except raw material& manual operation) |
Equipment Failure Rate |
≤2% (Caused by Equipment) |
妈in Accessory |
Air Cylinder: AirTAC Screw Guide: HIWIN/TBI PLC: Mitsubishi/ XINJE |
Working Environment |
General workshop environment (Avoid corrosive gas and dust) |

|
