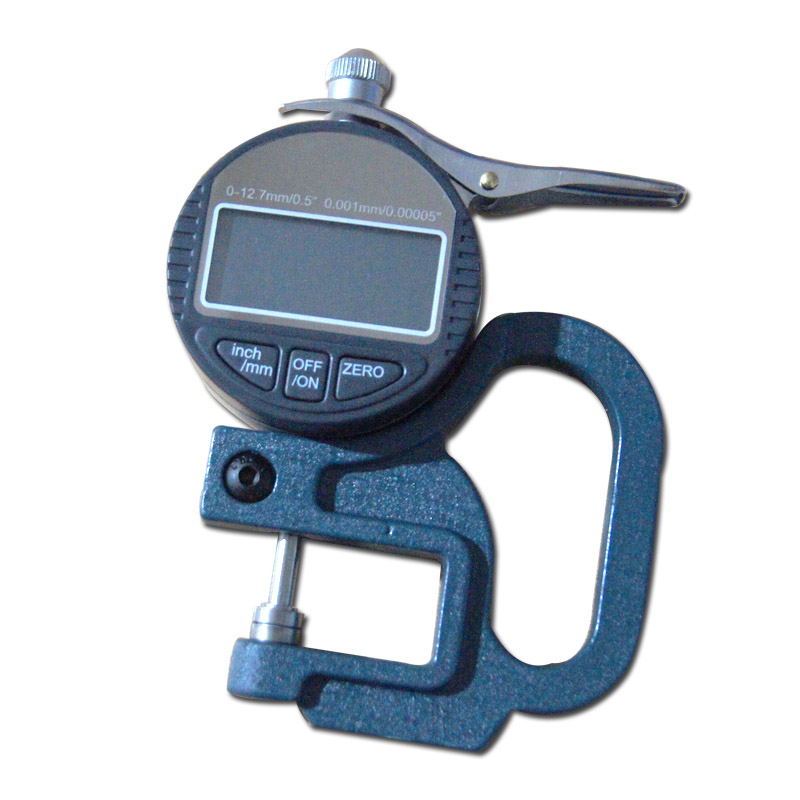

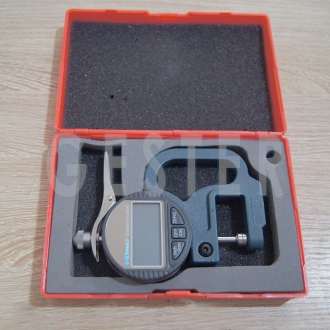

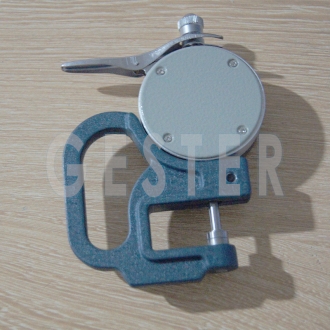

Thickness Tester GT-MB14

(Toys Testing)

Item NO.:
GT-MB14
Lead Time:
7-30days
Brand:
GESTER
Payment:
100% T/T in advance
certificate:
ISO 9001, UKAS, CE
standard:
EN-71-1, ISO 8124-1, ASTM F963, GB 6675-2, ISO 4593

Contact Now

Description

Thickness tester

应用程序:

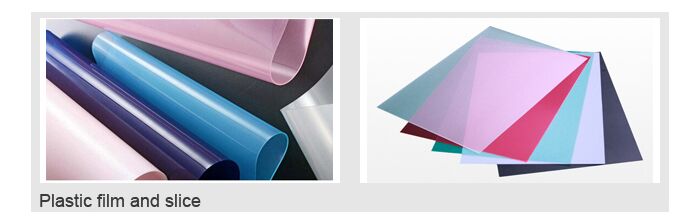

This Thickness Tester is suitable to determine plastic film and slice thickness with mechanicalmeasurements.(Not suitable for embossed film and slice)

Standards:

EN-71-1 section 8.25

ISO 8124-1 section 5.10

ASTM F963 section 8.21

GB 6675-2 section 5.10

ISO 4593

在16890-2017 Section 8.2.2

Key Specifications

Model	GT-MB14
Measuring range	0-1mm
Accuracy	Within 100 µm Accuracy: 1µm 100µm to 250µm Accuracy: 2µm Above 250µm Accuracy: 3µm
Presser foot diameter	10mm
Pressure	0.5N-1.0N
Dimensions (L×W×H)	110×80×150mm
Weight	1kg

Applications Industry

All kinds of plastic and films can be tested on the Thickness Gauge
